Mru Field: fault tolerance for hard-to-reach systems.

Mru Field runs your task as three replicas on one processor, the one already in your enclosure. Each cycle it reads the input once, hands the same bytes to every replica, and decides which result to trust. As replicas fail, it moves from voting to comparing to self-checking, and keeps delivering checked results until none are left. A second processor over a link is planned.

Status: version 0.1.0, built and tested on the bench on general-purpose processors, not yet on a board in the field. The decision core has run three times in orbit.

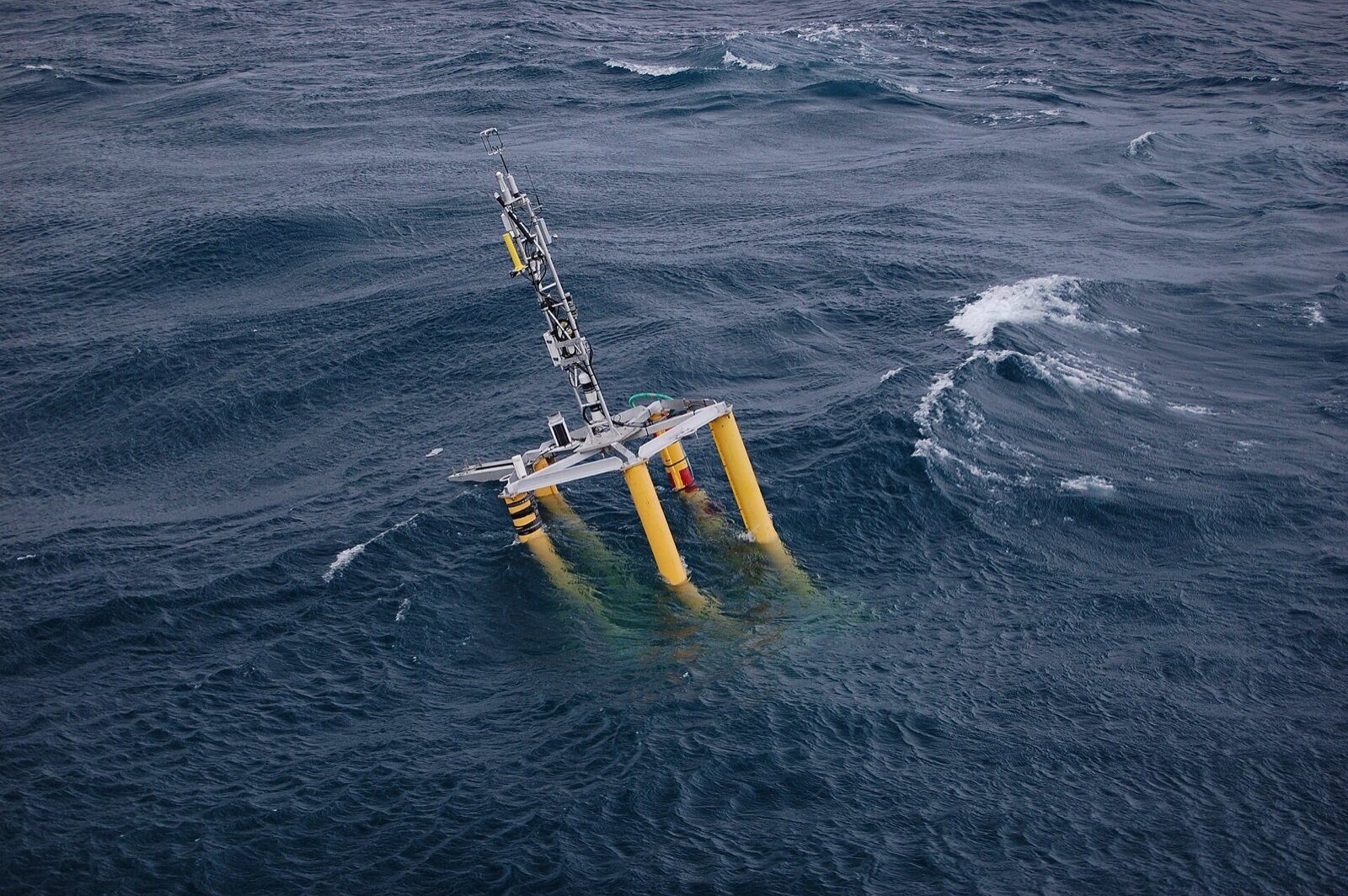

A spar buoy in rough open ocean
Air-sea interaction spar buoy deployed in rough open oceanLt. Elizabeth Crapo, NOAA Corps · Public domain

What it does

Four things, and nothing else.

Fixed triple redundancy stops at the second replica failure. Mru Field continues with what is left, and tells your operators which mode it is in.

01

Steps down instead of stopping

Vote on three, compare on two, self-check on one. It halts only when no replica is left.

02

Delivers only checked results

A result leaves only if two replicas agree, or the last one gets the same answer twice. Kani proves this for every set of three replies to the decision function.

03

Diagnoses before it retires

A replica outvoted 3 times in 200 cycles gets a known-answer test. It is retired only if it fails.

04

Logs every decision

Mode changes, retirements, detected and delivered results, and every resume after a power cut, for your telemetry.

Requirements and limits

Requirements and limits

What it needs, and what it does not do.

Your instrument and control code stays as it is. Mru Field sits between your task and the processor.

ProcessorsMru Field needs one Linux processor. The supervisor runs three replicas of your task as processes on it, and still works with one, in self-check mode. Replicas on a second processor over a link are planned. Until then, a failure of the processor itself is not survived. Mru Flight, for spacecraft, puts the replicas on two or more processors.
Platforms todayLinux on ARM64, 32-bit ARM and x86_64. Decision core also builds bare-metal for ARM Cortex-M.
FootprintAt most 2.1 MB per process over every bench run on three hosts, 1.7 MB on 64-bit ARM Linux. Static release binaries are 642 to 675 kB.
Throughput costThree computations per cycle while three replicas are alive. With two, a mismatch loses that result and costs a known-answer test on both. On the last one the task computes twice per cycle.
Known limitOn the last replica, only the periodic known-answer test, every 64 cycles by default, can catch a stuck fault. Measured with the demo task: every stuck result was caught, after 15.5 wrong results on average. The one test input saw 50% of stuck-at bits in the result; the others keep delivering wrong results. Bit flips that hit both self-check runs alike are not caught.
InputsThe supervisor reads each input record once, from a serial port, a file, a socket or a command, and hands the same bytes to every replica. Your task computes from that record and the state it is handed, and nothing else. Across processors, real sensor inputs would still need an agreement step, which Mru does not provide yet.
Not forCertified safety functions. Protection systems keep their own certification.
Yours

Instrument and control code

Your task: a function from an input record to an output record, in any language. Sampling and telemetry unchanged.

Mru

Mru Field

Acquisition once, shrinking quorum, health record, known-answer tests, checkpoint and resume, decision log.

Yours

One Linux processor

The board already in the enclosure. A second processor over a link is planned.

Where it applies

Where it applies

See more use cases
How we work with you

How we work with you

Simulate. Pilot. Then the fleet.

Each step is small enough to stop after.

1 · Simulate

Your hardware, modeled

We model your processors, failure rates and deployment length, and show what each redundancy design returns over the whole life. You get the model and the data.

2 · Pilot

One site, months unattended

Mru Field on your own equipment, with the decision log in your telemetry. A pilot on a European ocean observatory node is proposed for 2027.

3 · Fleet

License and support

Annual license per site or fleet, with support.

Questions

Is it open source?

The decision core and the simulator are open source under Apache 2.0, and the whitepaper is published under CC BY 4.0. Mru Field adds integration and support for your site.

What evidence is there today?

Simulation over 10,000 missions, a fault-injection demo and a bench on real processes, 9 Kani proofs, three runs in orbit on ESA's OPS-SAT PRETTY, and the supervisor's own tests and scenario checks on the bench, in its repository. None of it has run on your equipment yet.

How is it priced?

An annual license per site or per fleet, with support. We discuss terms once we know the hardware and the deployment.

Do we need to change our code?

Your task becomes a function from an input record to an output record, over standard input and output, in any language. The supervisor reads each input once and runs three replicas of the task. It needs a known-answer test for the task. A check tool tells you whether the task is deterministic, and a wrapper runs an existing program once per cycle without a code change.
